Product Introduction

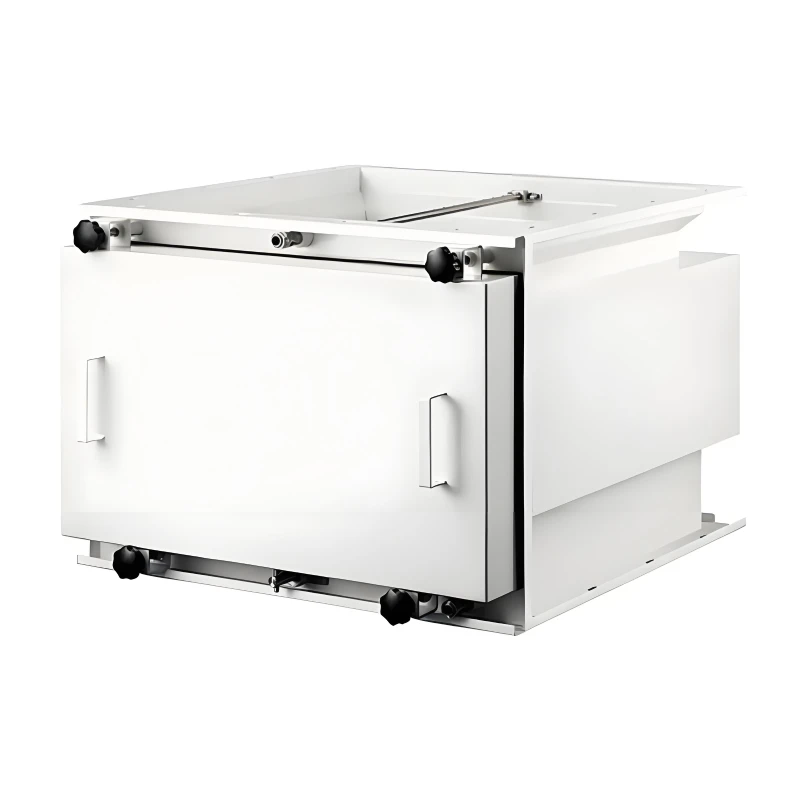

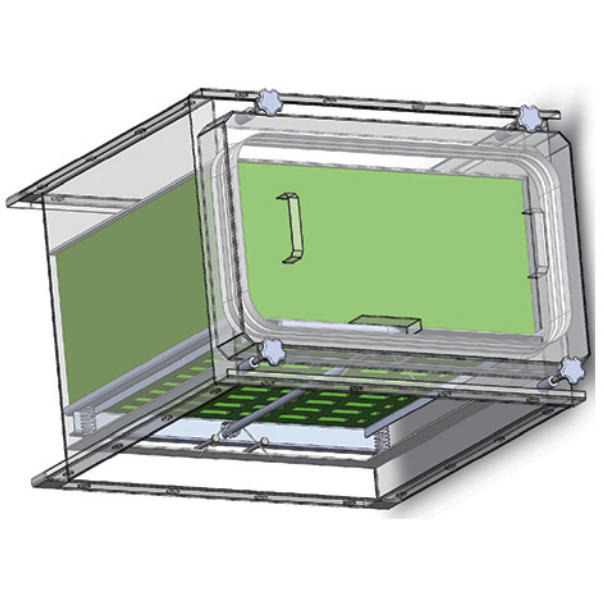

Camsafe is a high-efficiency safety exhaust filter unit installed in ductwork. It can be equipped with a safety bag for filter replacement. The main housing structure is fully welded and undergoes structural strength and airtightness testing at 5000Pa to ensure that hazardous gases in the duct do not leak. The high-flatness sealing surface inside the housing, combined with the filter gasket, achieves leak-free performance between the filter upstream and downstream. When equipped with an H14 filter, it meets the standard requirement of PAO/DEHS total efficiency not less than 99.99%. The housing is made of 304 stainless steel, with carbon steel epoxy spray coating also available.

제품 특징

1. Camsafe is welded firmly without deformation, ensuring overall structural strength and airtightness of the housing

2. 3mm 두께 스테인리스 304 또는 냉각 압연 강철로 만든 주택;스테인리스 스틸 표면 수동화, 색깔 RAL9016로 입히는 냉각 압연 강철 표면 에폭시 스프레이, 주택 표면이 먼지 축적에 취향이 없고 포르말데히드와 H에서 부식에 저항하는 것을 보장합니다₂O₂

3. Filter clamping device made of stainless steel 304 for quick clamping

4. 입구/출구 사각형 플랜지, 배달 전에 미리 교련된 플랜지 폭 50mm

5. 안전 교체 가방은 운영자가 필터와 접촉하지 않도록 보장합니다.

6. Camsafe compatible filters: Camsafe-1000 filter size 610×610×292mm; Camsafe-450 filter size 305×610×292mm
