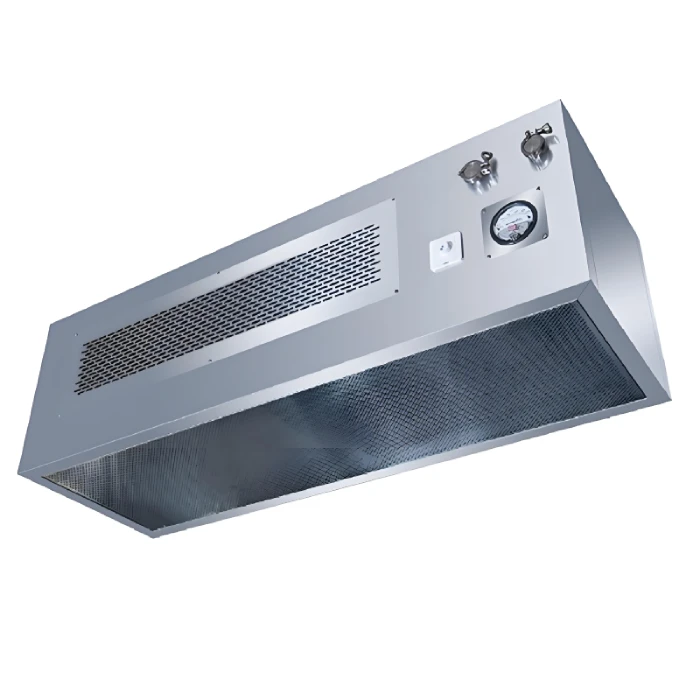

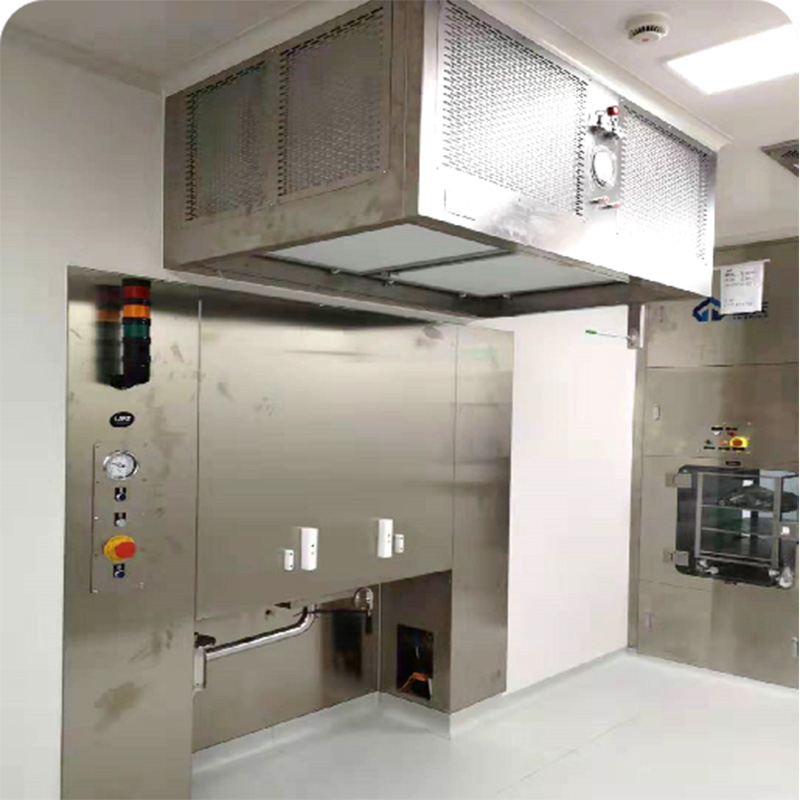

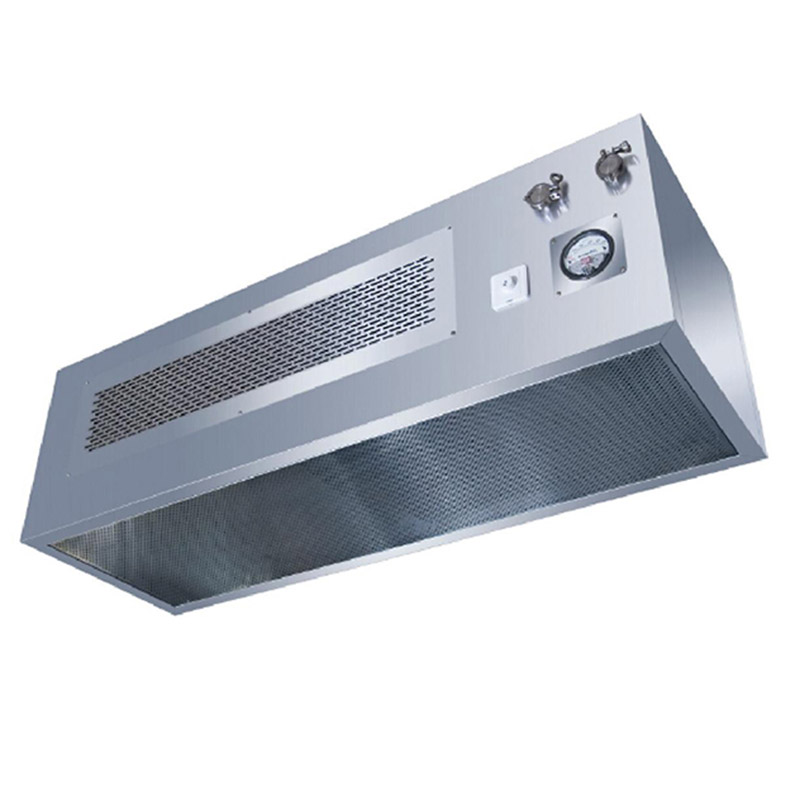

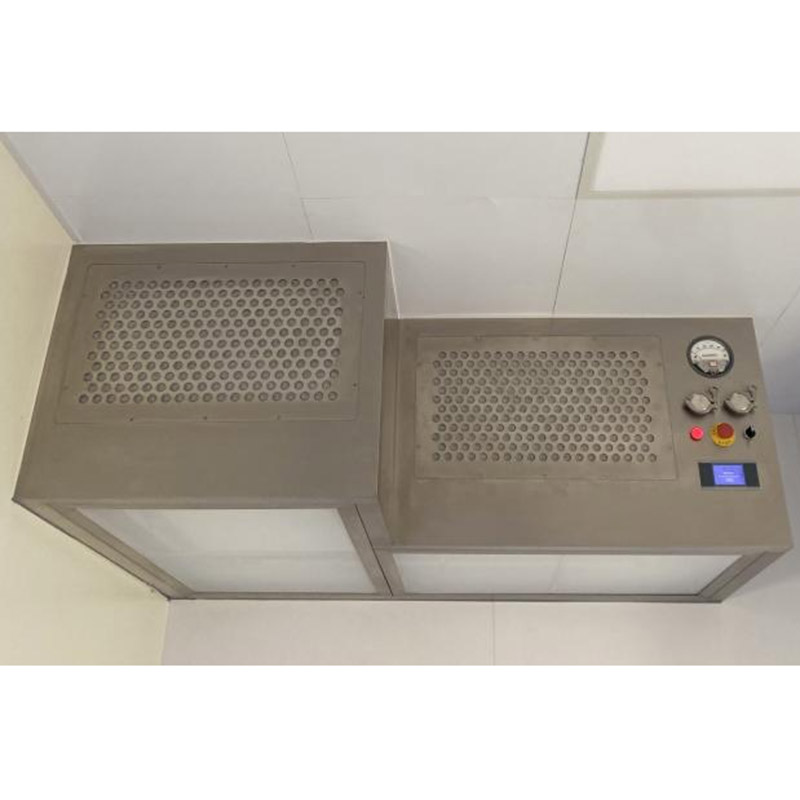

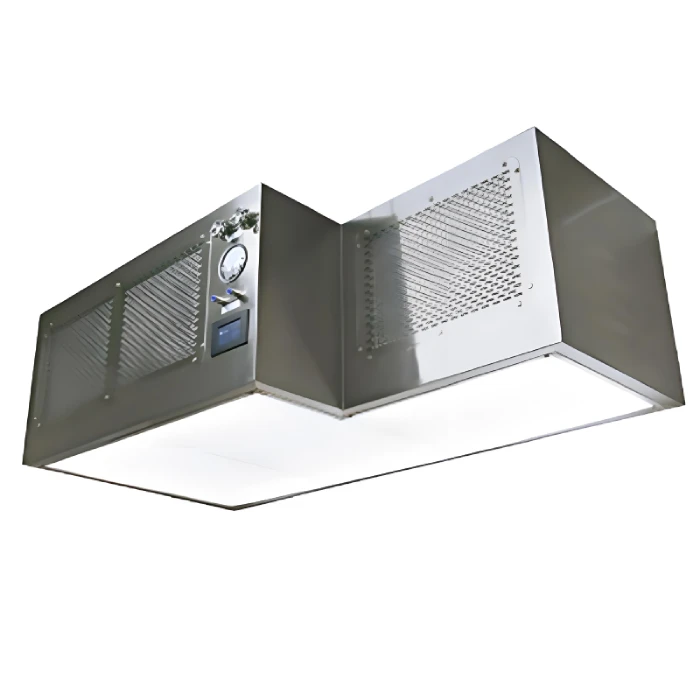

깨끗한 라미너 흐름 후드

개요:

정화된 라미너 흐름 커버는 지역적으로 깨끗한 환경을 제공 할 수 있는 공기 정화 단위입니다. 높은 청결성을 요구하는 공정 지점 위에 유연하게 설치할 수 있습니다.

키워드:
수평 또는 수직 라미너 흐름, HEPA/ULPA 필터, 스테인리스 주택, 저소음 팬 모듈, 깨끗한 벤치 호환성, 입자 없는 공기 구역, LED 빛 지구, UV 살균 옵션, 깨끗한 라미너 흐름 후드

Introduction detail:

Purified laminar flow cover  is an air purification unit that provides a local clean environment. It can be flexibly installed above the process point where high cleanliness is required. It can be used alone or in combination to form a strip-shaped clean area.Purified laminar flow cover passes the air through a high-efficiency filter at a certain wind speed to form a uniform flow layer, so that the clean air is vertically unidirectional, thereby ensuring the cleanliness of the process area.



Features:

●The cabinet is made of high quality SUS304 stainless steel, which is easy to clean;

● Top air supply, high efficiency filter efficiency ≥99.99%@0.3um, the operating area purification level is higher than the room cleanliness;

● The inverter adjusts the  wind speed ; the button controls the lighting and power.



매개 변수:

Technical reference

재료

Stainless steel panel

Features

Hanging type  landing support type



Applications

Precision Machinery, Electronics, Pharmaceuticals, Food, Fine Chemicals

Usage, purification

사용법

purification

Average wind speed

0.25-0.45m/s (adjustable)

소음

≤62dB(A)

Power supply

220V  50HZ의

Certification

ISO9001:2008;SGS는

​



1

사용하기 전에 부스는 얼마나 오래 운영해야합니까?

적절한 공기 흐름 패턴을 설정하고 필요한 청결성 수준을 달성하기 위해 사용하기 전에 최소 20 분 동안 켜 실행하십시오.

2

음압 무게 부스는 어떻게 작동합니까?

작업 영역은 배경 영역에 비해 부정압 하에서 작동합니다.정적 청결성은 배경 영역 청결성과 같습니다.클래스 A 정적 청결성을 달성하기 위해 배배기 항구를 닫으십시오.
