정적 패스 박스

1. Product Overview

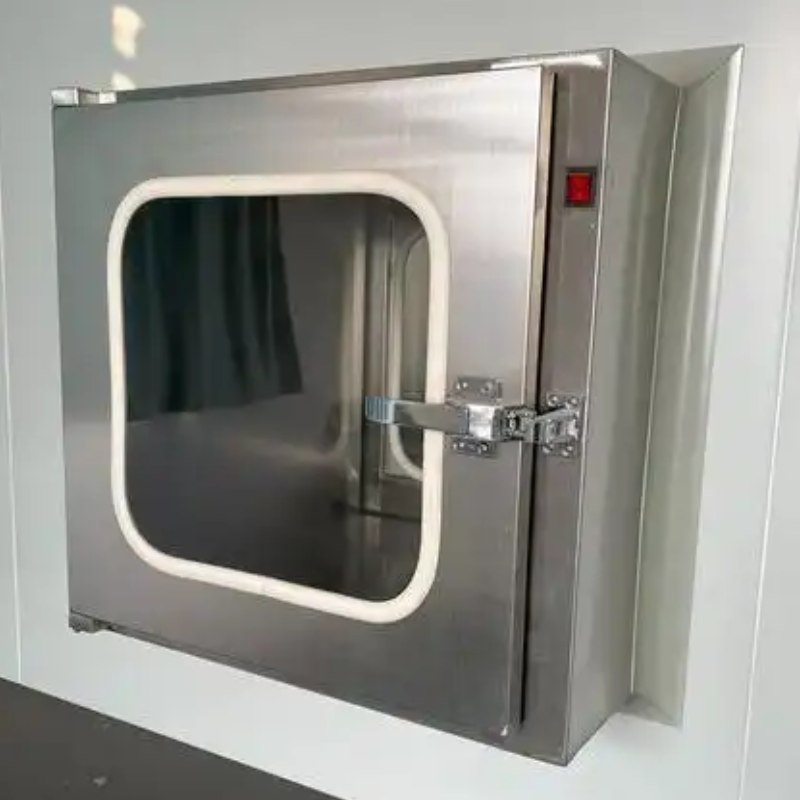

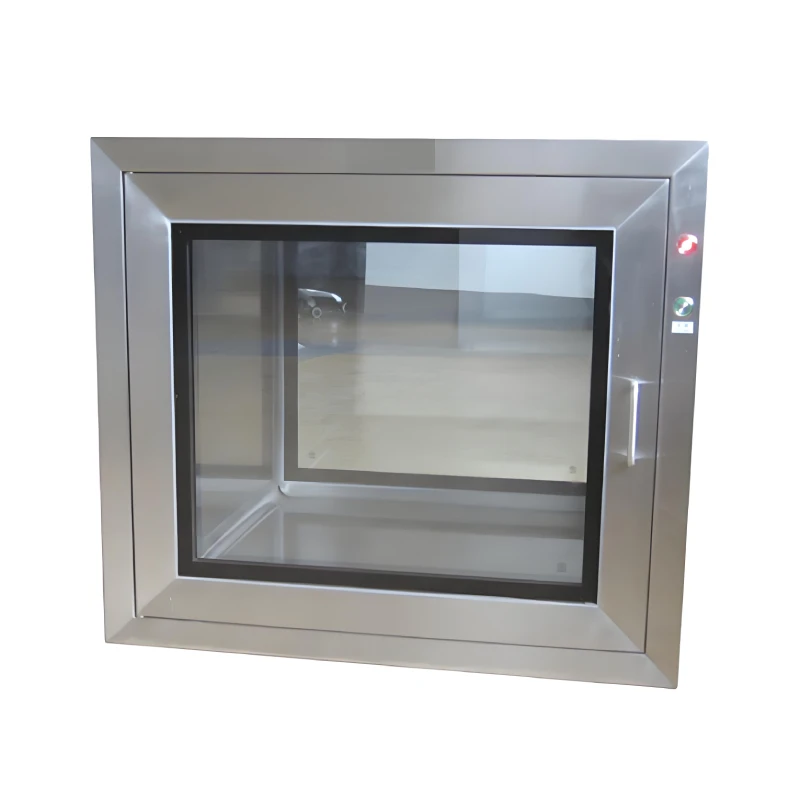

The Static Pass Box, also known as Static Transfer Window, is a material transfer device installed between clean and non-clean areas or between zones of different cleanliness levels. Unlike dynamic pass boxes that incorporate fans and filters, the Static Pass Box contains no powered devices and relies solely on physical isolation and interlocking mechanisms to achieve safe material transfer between areas of different cleanliness levels.

The Static Pass Box offers advantages including simple structure, low cost, easy maintenance, and noise-free operation. It is a fundamental material transfer device for cleanrooms and is widely used in pharmaceutical, biological laboratory, electronics manufacturing, and food processing industries.

2. Working Principle

The working principle of the Static Pass Box is based on two core mechanisms: physical isolation and interlock control.

첫째, 물리적 고립.패스 박스 하우징은 서로 다른 청결도 수준의 두 개의 영역을 물리적으로 분리합니다.두 문은 정상적인 조건에서 닫혀 있으며, 양쪽 사이의 직접적인 공기 교환을 방지하는 물리적 장벽을 형성합니다.

Second, Interlock Protection. An interlock device is installed between the two doors. When one door is opened, the opposite door is automatically locked and cannot be opened. This design ensures that only one door can be opened at any given time, effectively preventing cross-contamination through airflow.

Third, Material Transfer Process. The operator on the low-cleanliness side opens the outer door, places the material inside the chamber, and closes the outer door. The interlock then releases the lock on the opposite door. The operator on the high-cleanliness side opens the inner door, removes the material, and closes the inner door, completing one full transfer cycle.

Fourth, Seal Maintenance. When both doors are closed, the sealing device of the pass box ensures airtightness between the housing and doors, maintaining stable pressure differential between the two sides.

3. Product Structure and Components

The Static Pass Box consists of the following core components:

Housing: Manufactured from high-quality stainless steel sheet or cold-rolled steel sheet, with brushed or coated finish. The interior surface is smooth and flat for easy cleaning. The housing structure is robust with good sealing properties.

문: 일반적으로 내용을 관찰하기 위해 투명한 보기 창을 가진 이중층 강화 유리 문 또는 스테인리스 스틸 문.문은 부드러운 열기 및 닫기 위해 문문을 통해 하우징에 연결됩니다.

Interlock Device: Includes mechanical interlock and electronic interlock. Mechanical interlock uses mechanical linkages to achieve door interlocking without power supply. Electronic interlock uses electromagnetic locks and control circuits requiring power supply, offering better reliability and safety.

Sealing Device: High-elasticity sealing gaskets or magnetic sealing strips installed on the door edges to ensure airtightness when doors are closed.

작업 표면: 내부 바닥 표면은 평평한 작업 표면으로 일반적으로 스테인리스로 만들어져 있으며 내마모성 및 청소가 쉽습니다.일부 모델은 무거운 항목을 이동하기 위해 비 전원 롤러를 장착할 수 있습니다.

Handle: Stainless steel handles installed on doors, meeting cleanroom hygiene requirements and providing easy operation.

Indicator Lights: Electronic interlock models typically feature status indicator lights showing door open/close status and interlock status.

버저: 일부 모델은 문이 오랫동안 열려 있을 때 소리적 경보를 방출하여 운영자에게 문을 닫도록 상기시킵니다.

Control Panel: Electronic interlock models are equipped with a simple control panel for controlling interlock logic and alarm settings.

4. 특징 및 이점

First, Simple Structure. The Static Pass Box contains no complex components such as fans or filters. The structure is simple and reliable with low failure rate.

Second, Cost Effective. With no power or filtration systems, the manufacturing and maintenance costs of Static Pass Boxes are significantly lower than dynamic pass boxes, making them suitable for budget-constrained projects.

셋째, 소음 없는 작동.정적 패스 박스는 작동 중에 움직이는 기계적 부품이 없으므로 소음에 민감한 실험실 및 의료 시설에 적합한 완전히 조용한 작동을 가져옵니다.

셋째, 쉬운 유지보수.매일 유지보수는 내부 및 외부 표면을 청소하고 밀봉 가스켓을 검사하는 것으로 제한됩니다.필터 교체 또는 팬 유지 보수가 필요하지 않으므로 유지 보수 작업부하가 낮습니다.

다섯째, 유연한 설치.정적 패스 박스는 경량이고 컴팩트하여 설치를 쉽게 합니다.샌드위치 패널 벽, 벽돌 벽 및 건조벽을 포함한 다양한 벽 유형에 설치할 수 있습니다.

Sixth, Energy Efficient. Static Pass Boxes require no power except for the electronic interlock (which consumes minimal electricity). This meets energy efficiency requirements.

Seventh, Safe and Reliable. The interlock device ensures both doors cannot be opened simultaneously, effectively preventing cross-contamination. Electronic interlock models also feature power-off protection where all doors automatically lock when power is lost.

Eighth, Highly Customizable. Dimensions, materials, interlock type, door style, and other features can be customized according to customer requirements to suit different application scenarios.

5. Technical Specifications (Standard)

주택 물자: 304 스테인리스 또는 316L 스테인리스, 또는 분말 코팅을 가진 냉각 압연 강철판

Door Material: Stainless steel door or double-layer tempered glass door (with viewing window)

창 유리 두께: 4 ~ 5 밀리미터 강화된 유리

Interlock Type: Mechanical interlock or electronic interlock

Power Supply: Mechanical interlock requires no power; electronic interlock requires AC220V 50Hz

Standard Dimensions (Width × Depth × Height): Common sizes include 400×400×400mm, 500×500×500mm, 600×600×600mm, 600×600×800mm, 800×800×800mm, and non-standard custom sizes available

Work Surface: Stainless steel flat plate or non-powered rollers

Sealing Gasket: Silicone sealing gasket or EPDM sealing gasket

Surface Finish: Brushed finish or mirror polished

Operating Temperature: 0 to 40 degrees Celsius

Operating Humidity: Less than 95% relative humidity

임명 방법: 벽 입은 임명

6. Product Classification

By Interlock Type: Mechanical Interlock Static Pass Box uses purely mechanical structure for interlocking, requires no power, suitable for locations without power supply or sensitive to electromagnetic interference. Electronic Interlock Static Pass Box uses electromagnetic locks and controllers for interlocking, offers fast response, high reliability, and alarm functions, suitable for GMP-compliant applications.

By Door Type: Stainless Steel Door Static Pass Box features all-stainless steel door structure, robust and durable, suitable for high-frequency use. Glass Door Static Pass Box features double-layer tempered glass door structure, high transparency for easy viewing of contents, suitable for applications requiring real-time visibility.

재료에 의하여: 전적으로 304 또는 316L 스테인리스로 만든 전체 스테인리스 정적 통행 상자, 제약 및 생물학 실험실에 적합한 높은 내식성.탄소 강철 분말 코팅 분말 코팅, 저렴한 비용, 일반 산업 환경에 적합한 냉각 압연 강철로 만든 정적 패스 박스 주택.

설치 방법에 의해: 표준 내장된 정적 통행 상자는 벽에 플러시를 설치하고, 벽 표면과 수준합니다.벽에 장착된 정적 패스 박스는 플랜지를 통해 벽 표면에 고정되어 있으며 벽벽이나 큰 개구를 만들 수 없는 장소에 적합합니다.

By Application: Standard Static Pass Box provides basic transfer and interlock functions only. UV Static Pass Box features built-in UV sterilization lamp for initial surface disinfection of items. Clean Static Pass Box features specially treated interior with smooth, dead-corner-free surfaces, suitable for higher cleanliness requirements.

7. 응용 분야

Static Pass Boxes are widely used in various locations with certain cleanliness requirements but without the need for complex purification functions.

Pharmaceutical Industry: Used for material transfer in non-sterile drug production workshops, API production workshops, packaging workshops, and between warehouses and production areas. Static Pass Boxes are suitable for material transfer between Grade C and Grade D clean areas and between clean and non-clean areas.

Biological Laboratories: Used for sample and reagent transfer in general biological laboratories, microbiology laboratories, and molecular biology laboratories. Static Pass Boxes can be used with UV sterilization lamps for initial surface disinfection.

전자 제조: 전자 부품 조립 작업장, PCB 생산 작업장 및 정밀 계기 조립 작업장에서 재료 전송에 사용됩니다.정적 패스 박스는 먼지와 입자가 다른 지역 사이에 이동하지 않습니다.

병원 및 의료 시설: 일반 병원, 외병 치료실, 중앙 살균 공급 부서에서 항목 이동 및 약국과 간호사 역 사이의 약물 이동에 사용됩니다.

식품 가공: 식품 포장 워크식식당, 원료 준비 지역 및 완제품 창고 사이의 재료 전송에 사용되며, 해충과 먼지가 생산 지역에 들어오지 않도록 방지합니다.

화장품 생산: 화장품 충전 작업장, 포장 작업장 및 창고 사이의 재료 전송에 사용되며 생산 지역의 위생 조건을 유지합니다.

인쇄 및 포장: 특정 청결성 요구 사항을 가진 인쇄 작업장 및 박판 작업장에서 재료 전송에 사용됩니다.

General Industry: Used for material transfer between general workshops and warehouses in electronics, machinery, chemical, and other industries, reducing dust and foreign matter entering production areas.

Research Institutions: Used for sample, reagent, and tool transfer in various research laboratories, reducing the impact of personnel entry and exit on experimental environments.

Data Centers: Used for equipment transfer between server rooms and maintenance corridors, reducing the impact of personnel entry and exit on the data center environment.

8. Comparison with Other Pass Boxes

Static Pass Box vs. Dynamic Pass Box: Static Pass Box has no fan or filter, relying on physical isolation and interlock for transfer. Dynamic Pass Box has built-in fan and filter with self-cleaning capability. Static Pass Box offers low cost, no noise, and maintenance-free operation. Dynamic Pass Box has higher cost, some noise, and requires regular filter replacement and fan maintenance. Static Pass Box is suitable for lower cleanliness requirements or items not sensitive to contamination. Dynamic Pass Box is suitable for aseptic transfer between high-grade clean areas.

Static Pass Box vs. VHP Pass Box: VHP Pass Box features vaporized hydrogen peroxide sterilization capability, achieving Log6 kill rate. Static Pass Box has no sterilization capability. VHP Pass Box is suitable for aseptic transfer with high cost and long cycle time. Static Pass Box is suitable for general clean item transfer with low cost and fast transfer speed.

Static Pass Box vs. UV Pass Box: UV Pass Box adds a UV sterilization lamp to the Static Pass Box design, providing surface disinfection of items. Static Pass Box relies solely on physical isolation. UV Pass Box is suitable for applications requiring initial disinfection of item surfaces. Static Pass Box is suitable for applications with no disinfection requirement or where items are pre-disinfected.

9. 선택 가이드

청소 수준 요구 사항: 패스 박스의 양쪽 사이의 청소 수준 차이에 따라 적절한 제품을 선택하십시오.불결성 요구 사항이 없는 작은 차이를 위해, 정적 패스 박스는 적합합니다.큰 차이나 불생성 요구 사항에 대해 Dynamic Pass Box 또는 VHP Pass Box를 선택해야합니다.

Item Characteristics: Determine the internal dimensions based on the size of items to be transferred. Consider the maximum length, width, and height of items, allowing appropriate clearance. For heavy items, consider selecting non-powered rollers.

Frequency of Use: For high-frequency use, electronic interlock type is recommended for fast response and high reliability. For low-frequency use, mechanical interlock type can be selected, requiring no power and offering lower cost.

Installation Environment: Confirm wall type and thickness, and select recessed or wall-mounted installation. For sandwich panel walls, standard recessed installation is suitable. For brick or concrete walls, installation openings must be prepared.

Material Requirements: For pharmaceutical and biological laboratories, all-304 or 316L stainless steel is recommended. For general industrial environments, carbon steel with powder coating is suitable.

Budget Constraints: When budget is limited and cleanliness requirements are moderate, Static Pass Box is an economical and reasonable choice. Electronic interlock type is more expensive than mechanical interlock type. Stainless steel material is more expensive than carbon steel material.

Compliance Requirements: The pharmaceutical industry should select pass boxes that comply with GMP requirements, typically requiring material certificates and factory inspection reports.

Door Type: Choose glass door when real-time viewing of contents is needed. Choose stainless steel door when high durability is required.

10. Installation and Maintenance

Installation Key Points: Cut an opening in the wall according to the external dimensions of the pass box. Insert the pass box housing into the wall opening, ensuring it is level. Fill gaps between the housing and wall with sealing compound or sealing gaskets to ensure sealing. Secure the pass box to the wall using mounting screws or fixing flanges. For electronic interlock type, connect power supply and ground. Install the doors and adjust hinges for smooth opening and closing. Test interlock functionality.

Daily Maintenance: Clean interior and exterior surfaces and viewing windows daily using lint-free cloth and appropriate cleaning agents. Regularly inspect sealing gaskets for aging, damage, or deformation; replace if damaged. Regularly check door hinges for looseness and tighten screws. For mechanical interlock type, regularly check interlock mechanism for smooth operation and apply lubricant if necessary. For electronic interlock type, regularly check indicator lights and buzzer for proper operation; test power-off protection function. Check doors for smooth opening and closing; adjust if sticking occurs.

필터 교체: 정적 패스 박스에는 필터가 없으므로 필터 유지보수가 필요하지 않습니다.

일반적인 문제 해결: 인터로크가 실패하는 경우 기계적 인터로크 링크가 일일일반적으로 일일일반적인 문제 해결: 기계적 인터로크 링크가 일일일일반적으로 일일일일일반적인 문제 해결: 인터로크가 실패하면 기계적 인터로크문이 제대로 닫히지 않으면 문문 문문 문문이 잘 닫히지 않으면 문문 문 문문 문이 문이 문을 잘 닫지 않는지 확인하십시오.전자 인터로크 유형이 전력이 없다면 전력 연결과 신관을 확인하십시오.표시등이 조명되지 않으면 전구나 LED가 손상되었는지 확인하십시오.부저가 지속적으로 경보를 주면 문이 완전히 닫혀 있는지 또는 경보 지연 설정이 적절한지 확인하십시오.
